Fuel Pump Kit    P/N 035FPK

This kit is brand new, includes the latest Fabric reinforced Nitrile Diaphragm, compatible with all modern fuels & lubricants including ethanol based petrols & synthetic oils.

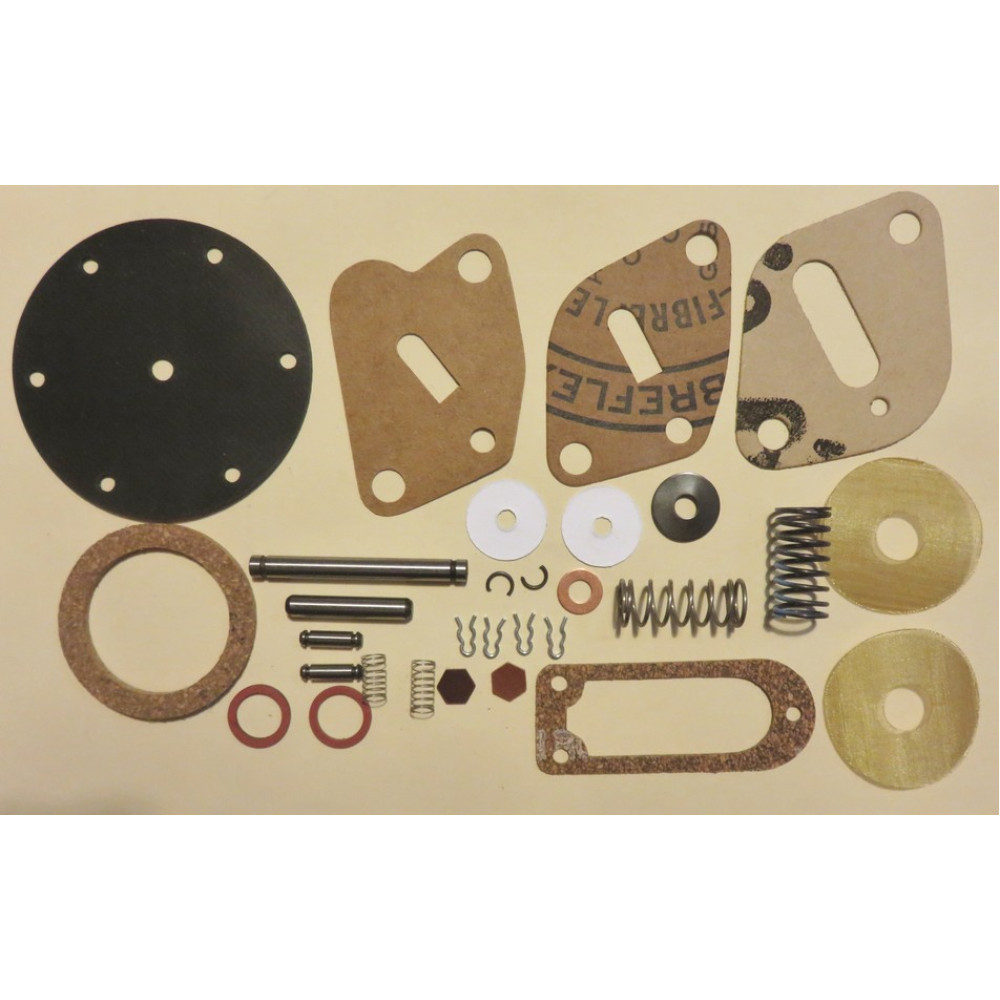

Kit includes pivot pins, clips, seals, valves, valve springs, filter brass mesh gauze, diaphragm, all gaskets, washers, seals & springs for rocker-arm

NOTE: Check carefully, the number stamped on your pump, not every model of these vehicles uses this kit.
For example: Plymouth 6 cyl USA 1939-54 used 5 different AC pumps.
This kit fits AC Type B pumps with number 855085 to 855233 inclusive, PLUS the pump numbers listed here .

Suits AC Type B Fuel Pumps first introduced in 1929

As used in the following vehicles:

A.E.C Q Type Bus [First 50 vehicles] pump No. 856995

Alvis 1934 pump No. 856898

Armstrong Siddeley 12HP 1932-33 pump No. 856699

Armstrong Siddeley 15HP 1932-33 pump No. 856658

Armstrong Siddeley 20HP 1932 pump No. 856700

Armstong Siddeley Economy Model 1933 pump No. 856699

Armstrong Siddeley 20HP 1933 pump No. 856846

Armstrong Siddeley Siddeley Special 1933-37 pump No. 856858

Armstrong Siddeley 12HP 1934 pump No. 856913

Armstrong Siddeley 15HP 1934 pump No. 856911

Armstrong Siddeley 20HP 1934-37 pump No. 856909

Auburn 8-95 1930 pump No. 855649

Auburn 125 1930 pump No. 855650

Auburn 653; 654 1935-36 pump No. 1521814

Auburn 851; 853 1935-36 pump No. 1522146

Austin 10HP [after engine no. 7470] 1932 pump No. 856725

Austin Twelve Six [after engine no. 12514] 1932 pump No. 856725

Austin 16HP 1932-34 pump No. 856690

Austin 10/4 [to engine no. 39100] pump No. 856725

Austin 12/6 1933-34 pump No. 856725

Austin 12/4 1933/34 pump No. 856860

Austin 18HP 1934 pump No. 856881

Bedford W 1-1/2 ton 1931-33 pump No. 856565

Bedford ASXC 1933-34 pump No. 856565

B. S. A. 9HP 1932 pump No. 856756

Buick "30" 1930 pump No. 855356

Buick "40" 1930 pump No. 855401

Buick "50" 1930 pump No. 855400

Buick "50" 1931 pump No. 855760

Buick "60" ; "90" 1931 pump No. 855751

Buick "50" Some; 1932 pump No. 855760

Chevrolet All 1929-30 pump No. 856198

Chrysler 1930-32 all 6 cyl. with pump Nos. 855471; 855744; also type E pump no.1521021

Chrysler 1936 pump no. 1522237

Chrysler 1937 pump no. 1522995

Chrysler 1936-37 with F & V pump no. 1523137 fuel side; for vac side of this pump see my kit 120VPK

Citroen 1934 pump No. 856897

Cletrac Tractor Series 30; 40 [some] 1929 pump No. 855678

Cletrac Tractor Series 30; 40 1930-31 pump No. 855678

Cletrac Tractor Series 55 1936-39 pump No. 855678

Cletrac Tractor Series AG; E; 25; GB; AC; BG; EF 1936-39 pump No. 1521444

Commer Raider 1932-34 pump No. 856719

Commer Centaur 1932-34 pump No. 856674

Daimler 16/20HP 1931-34 pump No. 856640

Daimler 15HP 1933-34 pump No. 856671

Daimler Straight Eight 25HP 1934 pump No. 1524012

Daimler 20HP 1935-37 pump No. 856671

Daimler 15HP to engine No. 22917 1935 pump No. 856671

Daimler 23.8HP; 31.7HP 1938 pump No. 1524012

Dennis Lancet 3-1/2 Ton 1932-34 pump No. 856721

Dennis Ace 1934 pump No. 856962

DeSoto CF 8 Cyl. 1930-31 pump No. 855471

DeSoto CK; SA 6 Cyl. 1930-31 pump No. 855744

DeSoto SC 6 Cyl. some 1932 pump No. 855744

DeSoto 1; S2 1936 pump No. 1522237

DeSoto S1; S2 1936 pump No. 1522995

DeSoto S5 1938 pump No. 1522995

DeSoto S6 1939 pump No. 1523914

DeSoto S11 1946 pump No. 1522995

Diamond T 211A; 220; 227; 243; 311C; 312; 351C; 352 1935-36 pump No. 1521817

Diamond T 80; 211A; 212A; 212B; 220; 221; 227; 228; 243; 244; 311C; 312; 313; 320; 351C; 352; 353; 360 1938 pump No. 1521817

Diamond T 201; 404; 405; 406; 509 1938 pump No. 1521817

Dodge DD; DE; DH; 6 Cyl. 1930-31 oump No. 855744

Dodge DC 8 Cyl. 1930 pump No. 855471

Dodge DP; DQ; DR; DS 1933-34 pump No. 15221211

Dodge D1 6 Cyl. 1935 pump No. 1521789

Dodge D1; D2 1936 some pump No. 1522237. some pump No. 1522995

Dodge D5 1937 pump No. 1522995

Dodge D8 1938 pump No. 1522995

Dodge D11 1939 pump No. 1523914

Dodge 6 Cyl. 1946 pump No. 1537058

Dodge D24 1948 pump No. 1539211

Dodge Truck F35; F36; 83; 84 1930-31 pump No. 855810

Dodge Truck UF10; UF30; UF31 1930-31 pump No. 855471

Dodge TruckF10; F30; F31 1930-32 pump No. 855744

Dodge Truck UF10; UF30; UF31; UG30; UG31; UG43; UG44 1932 pump No. 855471

Dodge Truck HC; HCL 1933 pump No. 1521211

Dodge Truck KC 1934 pump No. 1521211

Dodge Truck KCL 1934 pump No. 1521770

Dodge Truck K31; K35; K36; K37; K43; K44; K45; K46; K47 1934 pump No. 1521388

Dodge Truck models 1934 to 1948  Contact info@fuelpumpkits.com.au for list of models and pump Nos. fitted

Fargo T30; T35; T38; T39; T40; T41; T45; T46; T48; T49; T50 1937 pump No. 1523164

Fargo T40; T41; T48; T49; T57;T58; T59; T60; T61 1938 pump No. 1523164

Federal Model D 1930 pump No. 855474

Federal Truck models from 1930 to 1949 Contact info@fuelpumpkits.com.au for list of models and pump Nos. fitted

Ford 4 cyl. USA car & truck 1932-34 pump no. 856253

Ford V8 USA car & truck 1932-33 pump no. 1421134

G.M.C. T11; T19 some 1929 pump No. 855409

G.M.C. T20; T30; T40; T42 some 1929 pump No. 855400

G.M.C. T11; T15; T17; T19 1930 pump No. 855409

G.M.C. T30; T42; T44; T60 1930 pump No. 855400

Graham 612 1929 pump No. 855307

Graham Std. 6 1930 pump No. 855307; 855677

Graham Special 6 some 1930 pump No. 855677

Graham Std. 8; Special 8 some 1930 pump No. 855747

Graham Std. 6; Special 6 some 1931 pump No. 855677

Hillman Wizard 1932-33 pump No. 856719

Hillman Minx 1932-34 pump No. 856753

Humber Snipe; Pullman some 1932-34 856674 some 856714

Humber 12HP; 14HP 1933-34 pump No. 1524005

I.H.C. Tractor F12 1933-34 pump No. 1521394

I.H.C. C35; C40 1935-36 pump No. 1521676

I.H.C. Tractor F12; I12; O12; W12 1935-38 pump No. 1521394

I.H.C. Tractor P12; F14; W14; O14 1939-40 pump No. 1521394

Jowett All 1932-34 pump No. 856687

Jowett 2 Cyl. [to car No. 541485] 1935-36 pump No. 856687

Meadows Engine Tank Engine 1933-37 pump No. 856704

Meadows Engine 8/28; 12/48 1933-44 pump No. 856764

Meadows Engine 100 1933-34 pump No. 856983

Meadows Engine EX 1933-34 pump No. 856984

Meadows Engine 8/28; 12/48; 4/ECA 1945-48 pump No. 856764

Meadows Engine Marine 80 1945-47 pump No. 1524230

Nash 450 1930 pump No. 855985

Nash 480 1930 pump No. 855570

Nash 490 1930 pump No. 855600

Nash 600; 960 1931-32 pump No. 855479

Nash 870 1931 pump No. 855985

Nash 880;980 1931-32 pump No. 855896

Nash 890; 990 1931-32 pump No. 855600

Nash 970 1932 pump No. 855985

Nash 1070 1932 pump No. 855985

Nash 1120; 1130 1933 pump No. 855985

Nash 1060 1932 pump No. 855479

Oakland All 1930 pump No. 855643

Oldsmobile All 1930-31 pump No. 855609

Oldsmobile F32 1932 pump No. 856269

Oldsmobile All 1933 pump No. 856269

Plymouth U 1930-31 pump No. 855471

Plymouth PA 1931 pump No. 855471

Plymouth PA 1932 pump No. 1521014

Plymouth PB 1932 pump No.1521022

Plymouth PC; PD 1933 pump No. 1521211

Plymouth PE; PF 1934 pump No. 1521211

Plymouth PJ 1935 pump No. 1521789; 1521819

Plymouth P1; P2 1936 pump No. 1522237; 1522995

Plymouth P3; P4 1937 pump No. 1522995; 1522237

Plymouth P5; P6 1938 pump No. 1522995

Plymouth All 1946-47 pump No. 1537058

Plymouth All 1948 pump No. 1539211

Pontiac All 1930 pump No. 855409

Reo Car Mate 1929-30 pump NO. 855239

Reo Car Master 1929 pump No. 855240

Reo Car Flying Cloud; 35 Royal 3; 1930-31 pump No. 855986

Reo Car 8-21; 8-31; 8-35; 8-52; 1931-32 pump No. 855986

Reo Car 6 Cyl. 1932 pump No. 1521016; 1521116

Reo Car S4 1934 pump No. 1521116

Reo Car All 1936 pump No. 1521116

Reo Truck 1A 1931 pump No. 855758

Reo Truck 1B 1931 pump No. 856101

Reo Truck 1B; 1D some 1932 pump No. 85610; 15210161

Reo Truck 1936-46 with loose leaf diaphragm [type E]

Reo Truck E19 Series 1950 pump No. 1521116

Rover Pilot 1932-33 pump No. 856672

Rover all except Pilot 1932 pump no. 856557

Rover 10HP 1933 pump No. 856799

Rover 16HP; 20HP 1933-34 pump No. 856843

Rover 10HP; 12HP 1934 pump No. 856893

Rover 14HP 1934 pump No. 856952

Singer 12; 18 6 Cyl. 1932 pump No. 856680

Singer 12HP 1933-34 pump No. 856809

Singer 18HP; 2 Litre 1933-34 pump No. 856680

Standard Big Nine 1932-33 pump No. 856667

Standard 16HP; 20HP 1932-33 pump No. 856665

Standard Twelve 1933 pump No. 856769

Standard 10HP; 12HP; 16HP; 20HP 1934-35 pump No. 856888

Standard 14HP 1934 pump No. 856769

Standard 10HP; 12HP; 16HP; 20HP 1935 pump No. 1524081

Studebaker Dictator 6 Cyl. 1929-30 pump No. 855402

Studebaker Dictator 8 Cyl. 1929-30 pump No. 855360

Studebaker Commander 8 Cyl. FC 1929-30 pump No. 855360

Studebaker Commander 8 Cyl. FD 1929-30 pump No. 855408

Studebaker President FE; FH some 1930 pump No. 855679

Studebaker truck K30 1938 pump No. 1523342

Studebaker Truck K20; K25 1938-41 pump No. 1523713

Terraplane 6 Cyl. 1932 pump No. 1521137

Vauxhall T80 1931-32 pump No. 856543

Vauxhall VX 1931-34 pump No. 856565

Vauxhall ASX 1933-34 pump No. 856565

Vauxhall BX; BXL 1934 pump No. 856565

Willys 97; 98D; 8-80 1931 pump No. 855972

Willys 87D; 95 1931-32 pump No. 856108

Willys 66E; 690; 888 1932 pump No. 855972

(035FPK)
