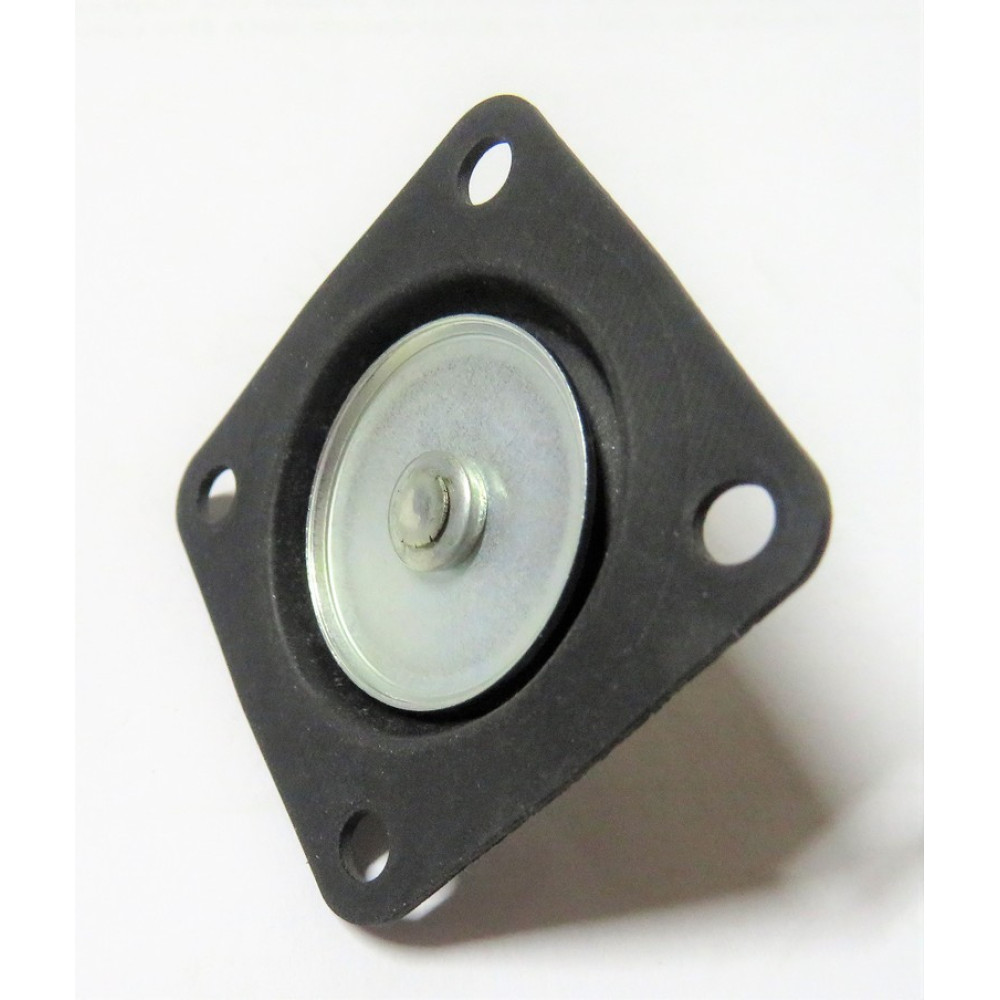

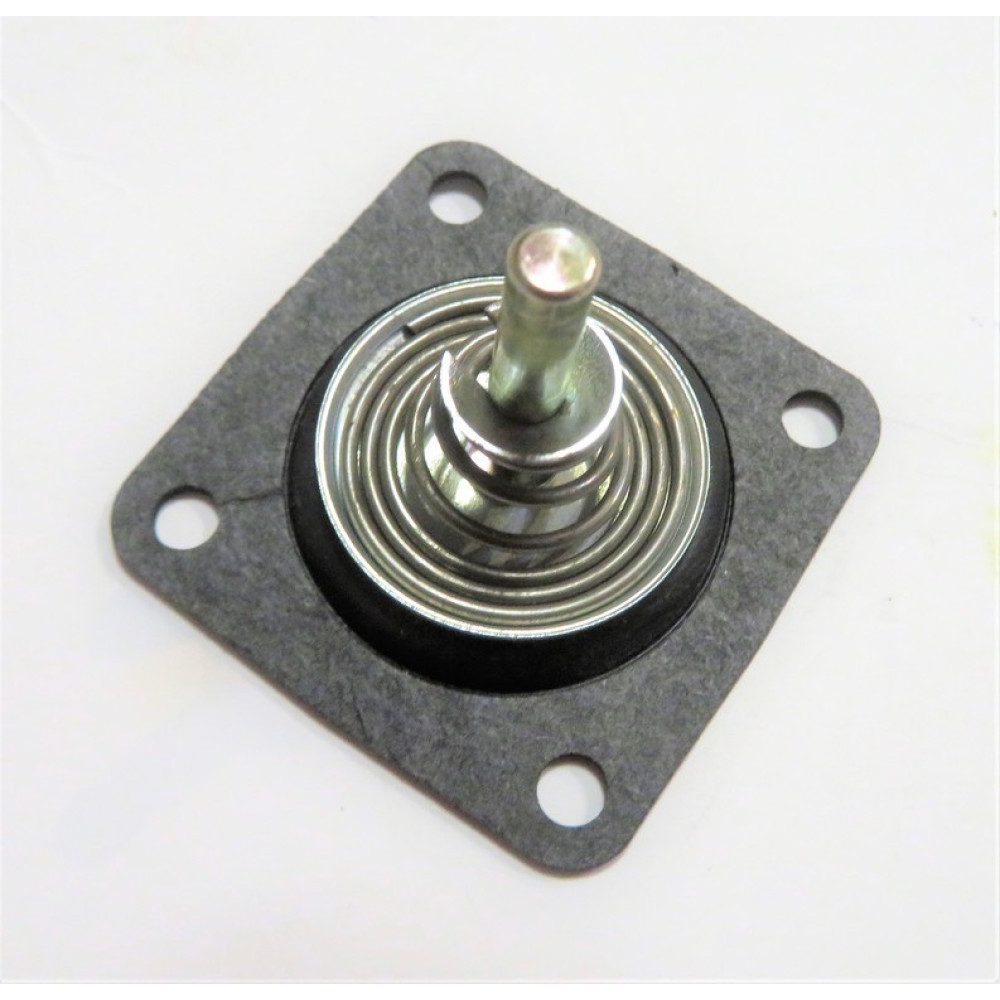

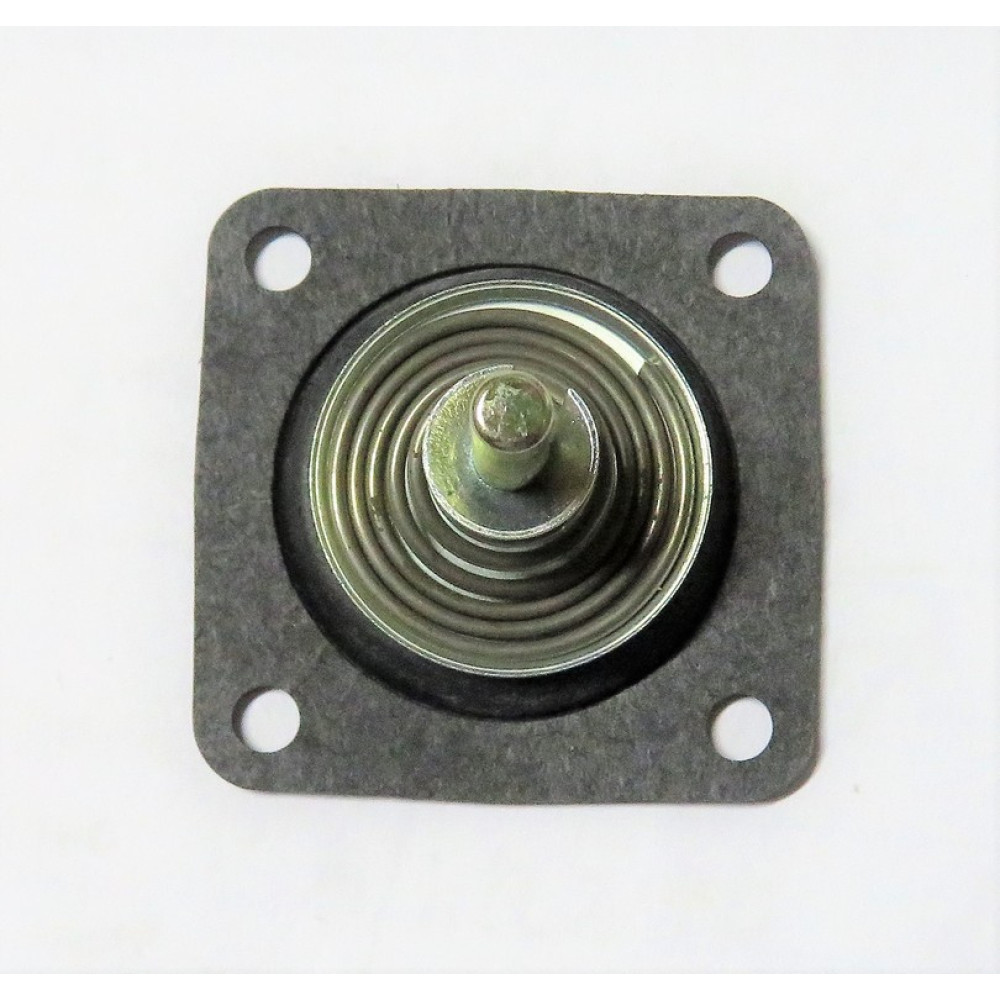

Autolite 2150 Ford Motorcraft Pump Diaphragm closed coil spring type P/n APD342
This diaphragm has a closed coil spring and .880” stem length
The 2150 pump diaphragm is 1-1/2" square.
Spring wire diameter is 0.047”
Carefully compare with your existing diaphragm
Check carb numbers this diaphragm suits
Diaphragm with open coil spring is P/N APD434
APD342 on left – closed coils APD434 on right – open coils
CARBURETOR NUMBERS:
E0AE-9510-AGA
E0AE-AGA
E0PE-9510-JA
E0PE-JA
E1DE-9510-HA
E1DE-9510-JA
E1DE-HA
E1DE-JA
E1PE-9510-AAA
E1PE-9510-KA
E1PE-9510-LA
E1PE-9510-TA
E1PE-AAA
E1PE-KA
E1PE-LA
E1PE-TA
E1TE-9510-CAN
E1TE-9510-CLA
E1TE-9510-CMA
E1TE-CLA
E1TE-CMA
E1TE-CNA
E1WE-9510-CA
E1WE-9510-DA
E1WE-9510-EA
E1WE-9510-FA
E1WE-CA
E1WE-DA
E1WE-EA
E1WE-FA
EOAE-AGA
EOPE-JA
Autolite 2150 Ford Motorcraft Pump Diaphragm closed coil spring type [APD342]
- Brand: Autolite
- Product Code: APD342
- Availability: 2
-
$29.00
