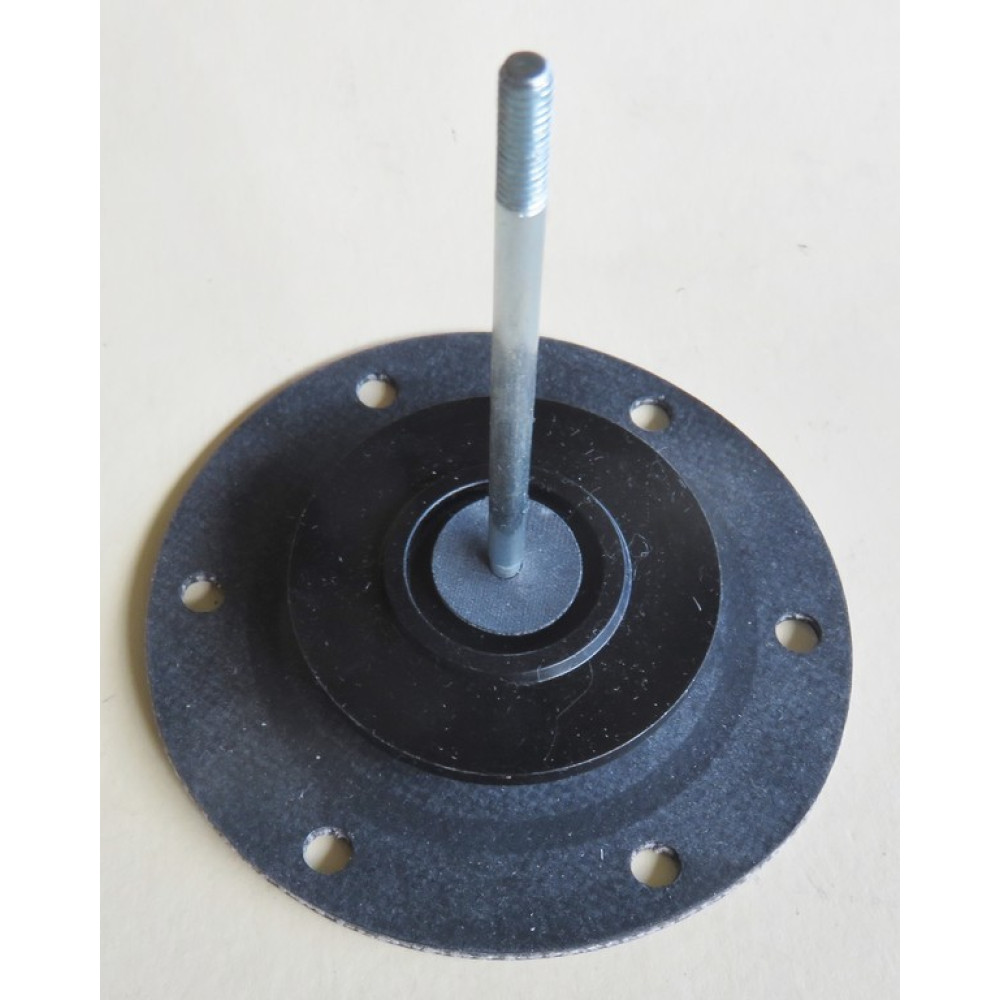

SU Fuel Pump Diaphragm P/N AUB6097
As used in:
LCS; LP; HP; Dual LP; Dual HP; AUA8; AUF200; AUF300; AZX1300; AZX1400; AZX1500; Series Pumps,
This diaphragm has the SHORT Spindle; 2-3/8" long (2.375")
Two layers of neoprene material with stiffening plate above diaphragm
This Diaphragm is now used in place of the AUB6098 for LP and Dual LP, pre 1985 pumps
Suits Coil Housing P/Ns. AUB6074 (pre Sept 85) AUB6080 (Short LCS Housing post Sept 85)
To determine which pump you have, see the Pump Body number stamped on housing where the pipe fittings attach
LCS Pump Body No. AUA4644
LP & HP Pump Body No. AUA4080
Bentley/R.R. AUA1480 pump body
Dual LP & HP Pump Body No. AUA4080
AUF 200 Pump Body No. AUB613
AUF300 & AZX1300 Pump Body No. BZX1005
All above use the short spindle diaphragm
SU Fuel Pump Diaphragm LCS, LP, HP, Dual LP, Dual HP, AUF200, AUF300, AUA8, AZX1300 Series, Short Spindle 2-3/8" (2.375") (AUB6097)
- Brand: SU
- Product Code: AUB6097
- Availability: 4
-
$77.00
- Ex Tax: $70.00
