Fuel pump rebuild kit P/N 945FPK

This kit is brand new, includes the latest Fabric reinforced Nitrile Diaphragm, compatible with all modern fuels & lubricants including ethanol based petrols & synthetic oils.

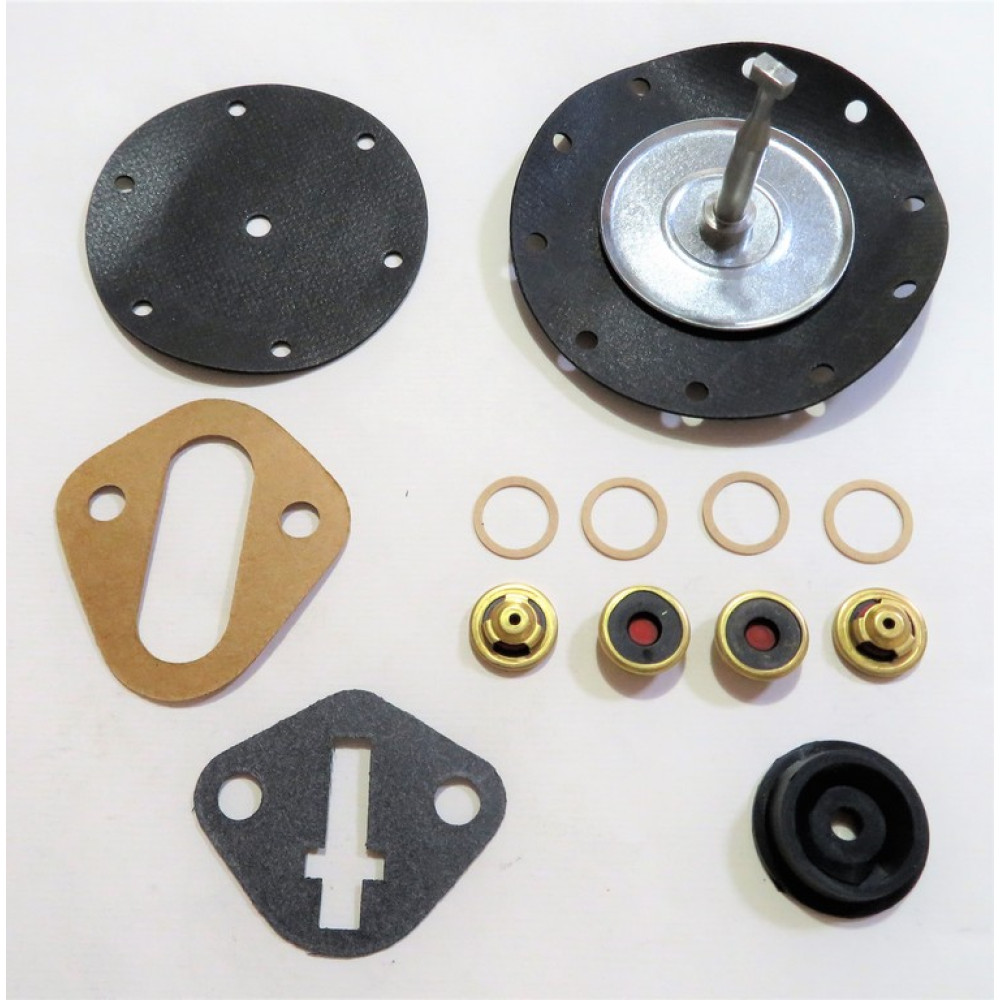

Kit includes pulsator diaphragm, 4 x 19mm valves and gaskets, flange gaskets

Overall diameter of diaphragm is 100mm, has 8 screw holes, pull-rod has effective length of 45mm, with “T” top and is round in section, not flat. – see below – measurement of effective length of pull-rod

As used in:

Toyota Land Cruiser with 6F engine from eng no. F211999 to 1971

Toyota Fork lift with F engine from no. F211999

This pump has a 8 screw, 100mm dia. diaphragm with “T top” type pull-rod end

NOTE: Toyota used 3 different type pumps in these vehicles
Difference in pull-rod on 10 screw diaphragm types shown here
6 hole type diaphragm in kit no 924FPK

945FPK on LEFT [in this kit]              993FPK on RIGHT
