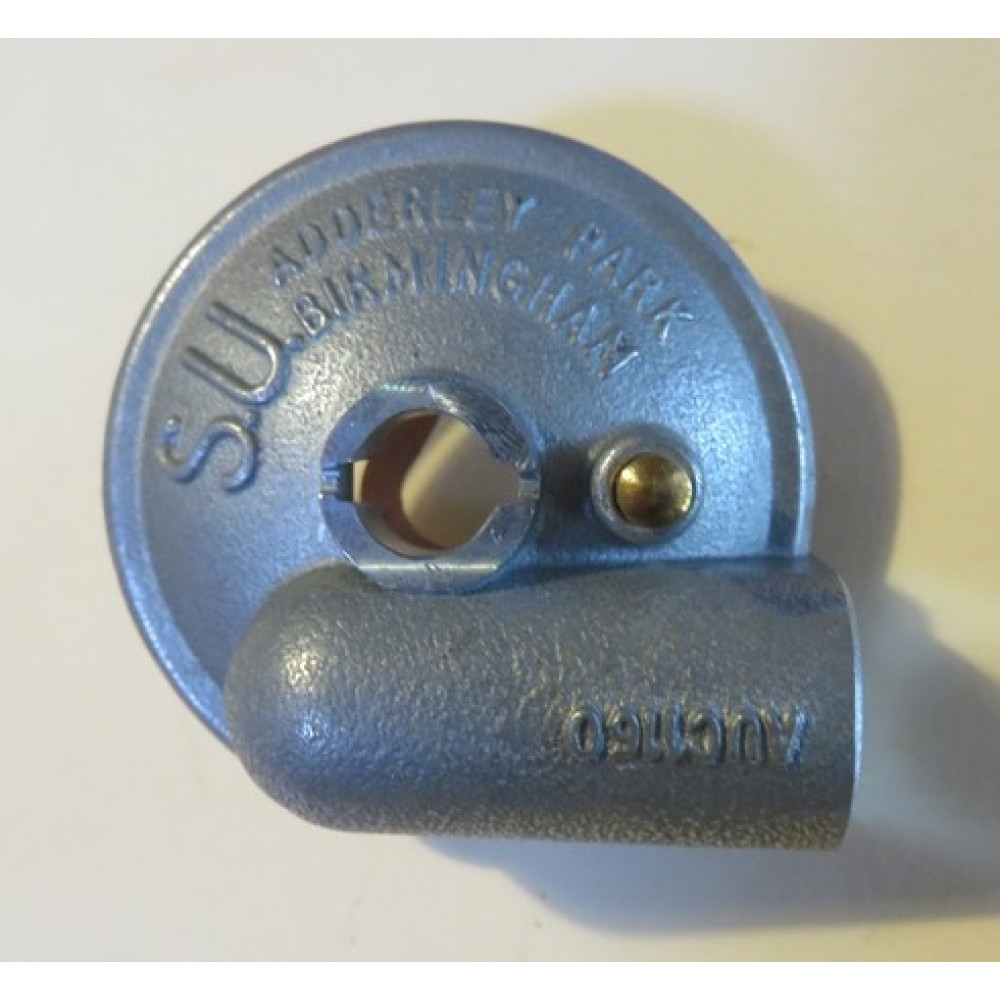

SU Carburettor Float Bowl Lid P/N AUE996A
Size: T2; 2-3/8" Diameter Bowl
Left Hand Type
Fitted with polished Brass Tickler Pin, complete with Needle and Seat, Float Fork & bowl gasket
Used with Banjo & Bolt, where an overflow pipe is fitted
Original SU 'bull nose' style, zinc alloy casting with raised lettering "SU Adderley Park Birmingham"
Casting number 1160
The difference between this Lid and AUE996 Lid is that where the holding bolt seats the slots here are closed off to the air and the alternate long holding bolt [AUC1867]
is used in conjunction with the serrated fibre washer [AUC1928] against the lid, an overflow pipe is fitted and alloy washer AUC1557 is fitted above the pipe.
SU Carburettor Float Bowl Lid T2 L/H 2 3/8" Bowl, No O/flow Pipe used (AUE996A)
- Brand: SU
- Product Code: AUE996A
- Availability: 2
-
$159.00
