Autolite 4100  Overhaul Kit    P/N AK438

As used in:

Ford - all 4100 carburetors with the exception of the 1957 Ford (early design).
The difference is easy to figure out. The accelerator pump diaphragms are different shape

MAKE
YEAR
MODEL
CYLS
EDSEL
1958-60
352, 361
8
F0RD/MERCURY
1958-59
383
8
F0RD/MERCURY
1958-69
289, 332, 352, 390, 428
8
WARNER SWASEY

SERVICE CARB

YALE & TOWNE

CHRYSLER INDUSTRIAL 30 ENG -Z

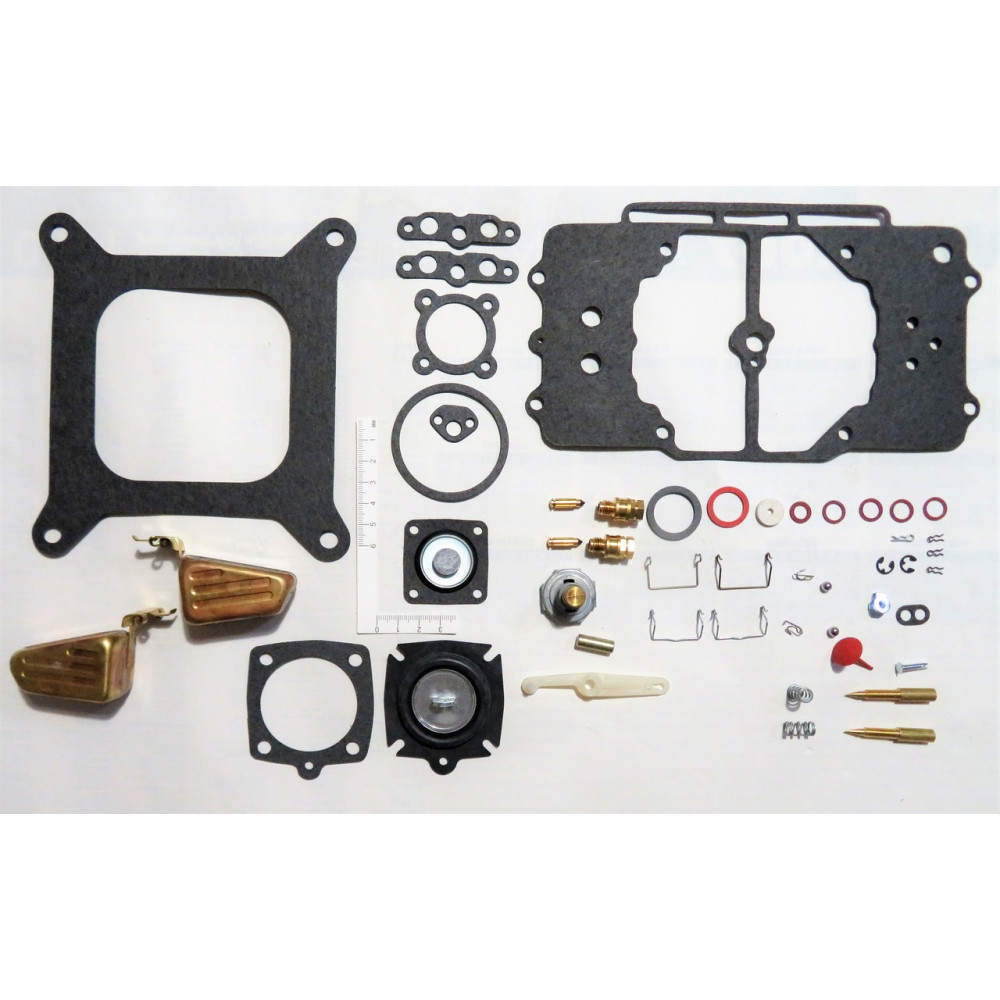

Kit includes:

  • Pair of new Brass Floats
  • Primary Pump Diaphragm
  • Accelerator pump plunger pin
  • Secondary Diaphragm
  • Secondary Diaphragm Lever
  • Pair of Needles & Seats – Viton Tip
  • Needle & Seat Clips (clips float to needle for better action)
  • 2 Idle Mixture Screws and 2 Springs
  • Float Bowl Gasket
  • Power Valve plus Gaskets
  • Flange Gasket
  • Venturi Gaskets
  • Thermostat Housing Gasket
  • Thermostat Cover Gasket
  • Idle Compensator Gasket
  • Secondary Diaphragm Cover Gasket
  • Small Parts & Clips

Carburetor numbers:
5751679 5751680 5751681 5751682 5751683 5752308 5752309 5752425 B8A-A B8A-E B8A-V B8A-W B9A-E B9MF-A B9MF-B
C0AE-J C0AE-K C1AE-AG C1AE-AH C1AE-AK C1AE-AL C2AE-AG C2AE-AJ C2AE-AK C2AE-AL C2AE-AN C2AE-AR C2AE-AT
C2AE-AU C2AE-AV C2AE-AY C2AE-AZ C2AE-BA C2AF-A C2AF-AJ C2AF-AK C2AF-AL C2AF-AM C2AF-AN C2AF-AR C2AF-N
C2AF-S C2AF-T C2AF-U C2AF-Y C2AF-Z C2AZ-G C2SE-C C2SF-A C2SF-B C2SF-C C3AF-AD C3AF-AT C3AF-AU C3AF-AV
C3AF-AY C3AF-BU C3AF-BV C3AF-BY C3AF-BZ C3AF-N C3AF-R C3AF-S C3AF-T C3OF-AB C3OF-AJ C3SF-B C4AF-AV
C4AF-AY C4AF-AZ C4AF-BA C4AF-BB C4AF-BC C4AF-BJ C4AF-BL C4AF-BM C4AF-BN C4AF-BS C4AF-BT C4AF-CG
C4AF-CJ C4AF-CK C4AF-CL C4AF-CM C4AF-DF C4AF-DG C4AF-DH C4AF-DJ C4AF-DK C4AF-DL C4AF-DU C4AF-DV
C4AF-DY C4AF-DZ C4AF-EA C4AF-EF C4AF-EH C4AF-F C4AF-K C4AF-N C4AF-R C4GF-AA C4GF-AB C4GF-AE C4GF-AF
C4GF-AZ C4GF-BA C4GF-E C4GF-F C4GF-Y C4GY-A C4GY-B C4OF-AL C4OF-AT C4OF-BT C4OF-BU C4SF-A C4SF-B
C4SF-D C4SF-E C4SF-F C4SF-G C4ZF-C C4ZF-D C4ZF-G C4ZF-H C5AF-AA C5AF-AC C5AF-AD C5AF-AE C5AF-AK
C5AF-AL C5AF-AN C5AF-AR C5AF-AS C5AF-AT C5AF-AU C5AF-AV C5AF-AZ C5AF-BA C5AF-E C5AF-F C5AF-H C5AF-J
C5AF-K C5AF-Z C5AZ-AU C5AZ-AY C5OF-J C5OF-K C5OF-L C5OF-M C5OF-T C5OF-U C5SF-A C5SF-B C5ZF-C C5ZF-D
C5ZF-E C5ZF-F C5ZF-J C5ZF-K C5ZF-L C5ZF-M C6AF-AB C6AF-AC C6AF-AD C6AF-AE C6AF-AF C6AF-AG C6AF-AJ C6AF-E
C6AF-F C6AF-G C6AF-H C6AF-J C6AF-K C6AF-L C6MF-B C6MF-BE C6MF-C C6MF-E C6MF-F C6MY-B C6MY-C C6MY-E
C6MY-F C6OF-D C6OF-E C6OF-H C6OF-J C6PF-H C6PF-M C6SF-A C6SF-B C6SF-C C6ZF-A C6ZF-B C6ZF-C C6ZF-D
C6ZF-E C6ZF-F C7AF-AL C7AF-AM C7AF-AN C7AF-AR C7ZF-B C7ZF-C C8AF-AE C8AF-BG C8ZF-J C8ZF-K EDC-C
EDC-D EDT-B EDT-C EFA9-AA EFA9-AB EFA9-AC EFA9-BB EFA9-BC EFAO-AA EFAO-AB EFAO-AC EFAO-BA
EFAO-BB EFAO-BC LSA1-SA LSA1-TA LSA1-TB LSA1-WA LSA1-XA LSA1-XB PB8M-J PB8M-K PB9M-D EDT-8B B8A-E EDC-D

This kit has a number 46 diaphragm.
Ford 1957 has a number 59 diaphragm



Autolite 4100 suits all 4100 [see carb numbers here] [except 1957 Ford] Motorcraft PREMIUM rebuild kit includes floats [AK438P]

  • Brand: Autolite
  • Product Code: AK438P
  • Availability: 1
  • $129.00
